4SD10 series

Solar Power High Pressure Deep Well Stainless Steel DC Moter Submersible/Centrifugal/Irrigation Water Pump

Application:
For 4" well pumping, garden/farm irrigation,
civil/industrial water supply.
Operating Condition:
Maximum sand content: 0.25%
Water temperature up to 35℃
Minimum well diameter: 4"(100mm)
Maximum immersion depth: 50m
Technical Data:
Oil-filled motor with built-in capacitor or control box
Floating plastic impeller
The length of cable 2m,10m,20m,30m on request
Brass outlet dimension :1"，1¼"，1½",2"

Product introduction

4SD10 series Solar Power High Pressure Deep Well Stainless Steel DC Moter Submersible/Centrifugal/Irrigation Water Pump, 4SD 3HP 2.2kw Water Lift Submersible Borehole Deep Well Pump, 5.5HP BIG Flow AC/DC MPPT Controller Solar Deep Well Submersible Electric Water Pump,Submersible Solar Energy Water Pump for Solar Panel, Farm Use 150m Heavy Duty Submissible 0.5HP DC Solar Water Pump Kit for Deep Well, dc pump,water pump, submersible pump, deep well pump.

Product Description

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.
For garden use and irrigation.

China Best price 3hp 500ft 4 inch deep well submersible pump

Operating conditions:

Maximum fluid temperature up to +35°C.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4".

Motor:
Rewindable motor.
Three-phase:380-415V/50HZ
Single-phase:220-240V/50HZ
Equip with special start-up control box.
Internal diameter of outlet:1.25".1.5".2"
Special features available:
Other voltages.

Frequency 60HZ.
Other mechanical seal.
Equip with Auto-control box.
Warranty:2 year

4SD10 SERIES SUBMERSIBLE DEEP WELL PUMP/UNDERGROUND WATER PUMP

China 4SD Cast Iron Outlet Clean Water Lift Submersible 1HP 0.75kw Borehole Deep Well Pump, 200 Meters Head High Quality Stainless Steel Industrial Borehole Pumping Machine Deep Well Water Pump, 4" 5 HP 200 Bar High Pressure Automatic Pressure Controller water Supply Submersible Deep Well Electric Water Pump, 4 Inches Long Life Cheap Price Multistage Impellers Submersible Deep Well Pump.

China Best quality 1.5hp 400ft 4 inch deep well submersible pump

China SUNDELI 4 Inch 0.75kw 1.0 Hp Electric Submersible Deep Well Pump, borewell Pump, Submersible Pump

Pump spare parts display:

1. Outlet: The pump outlet has size 1", 1.25" for choose, high-quality brass outlet is selected. The outlet adopts a pagoda-shaped design, which is convenient to connect water pipes and hoses. Advantage is wear-resistant, fall-resistant and not easy to rust, and cast iron outlet or stainless steel outlet can also be customized.

2. Inlet (suction): The water inlet (suction) connecting the motor and the pump body, adopts high-quality brass connectors, and a stainless steel filter is covered on the inlet to prevent sand, debris and other particles enter into diffuser. In addition, stainless steel suction, cast iron suction can be customized.

3. control box for 220v/50hz singal phase pump, there are capacitor,thermal protector,hand reset, connector terminal, switch in control box,capacitor for singal phase motor start, thermal protector protect motor from burnt,hand reset, switch are all famous brand good quality parts.

4. Cable is 4 core flat blue cable, brown, blue, black and earth cable, standard and enough strong cable, high-quality insulating material, to prevent leakage, the internal copper wire has good conductivity,Reduce voltage drop to supply voltage enough. blue color cable, red color cable, green color cable, black color cable for choose.

1" 1.25" brass outlet 4 inch deep well submersible pump brass Stainless steel inlet suction 4SD borehole deep well submersible pump 220V single phase control box panel 4 inch borehole deep well submersible pump 4 core flat blue cable brown blue black color 4" borehole submersible deep well pump

5. The stator adopts brand new 100% all-copper wire and excellent cold-rolled silicon steel sheet, which pass through multiple procedures, with sufficient power and durability.

6. High-precision rotors and precision bearings run smoothly and are durable. The rotor shaft is 45# carbon steel + 304 stainless steel, with NEMA standard teeth. each rotor has been checked for gas hole and broken bars.

7. Fu rubber mechanical seal double-end alloy mechanical seal has good oxygen resistance and aging resistance, durable, wear-resistant, corrosion-resistant alloy.

8. Excellent hydraulic design of the impeller and diffusor, POM white impeller, PC transparent diffusor, singnal floating impeller, reduce the motor load, increase the pump max head, corrosion-resistant, prevent the water pump from jamming and burnt motor.

100% copper wire motor stator 4SD boreqwell deep well submersible pump cast aluminum rotor for 4 inch borehole deep well submersible pump mechanical seal for 4" single phase borehole deep well submersible pump POM impeller and PC diffuser for 4 inch borehole submersible deep well pump

FEATURES:

1. CE, GS certificate

2. 100% copper wire, automatic wiring

3. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.

4. CNC precision automatic lathe for smoother shaft.

5. Strict tests include water test, outgas test and performance test, ect.

6. Anti-rust treatment castings and electrophoresis.

7. 15-year experience, 2 year warranty.

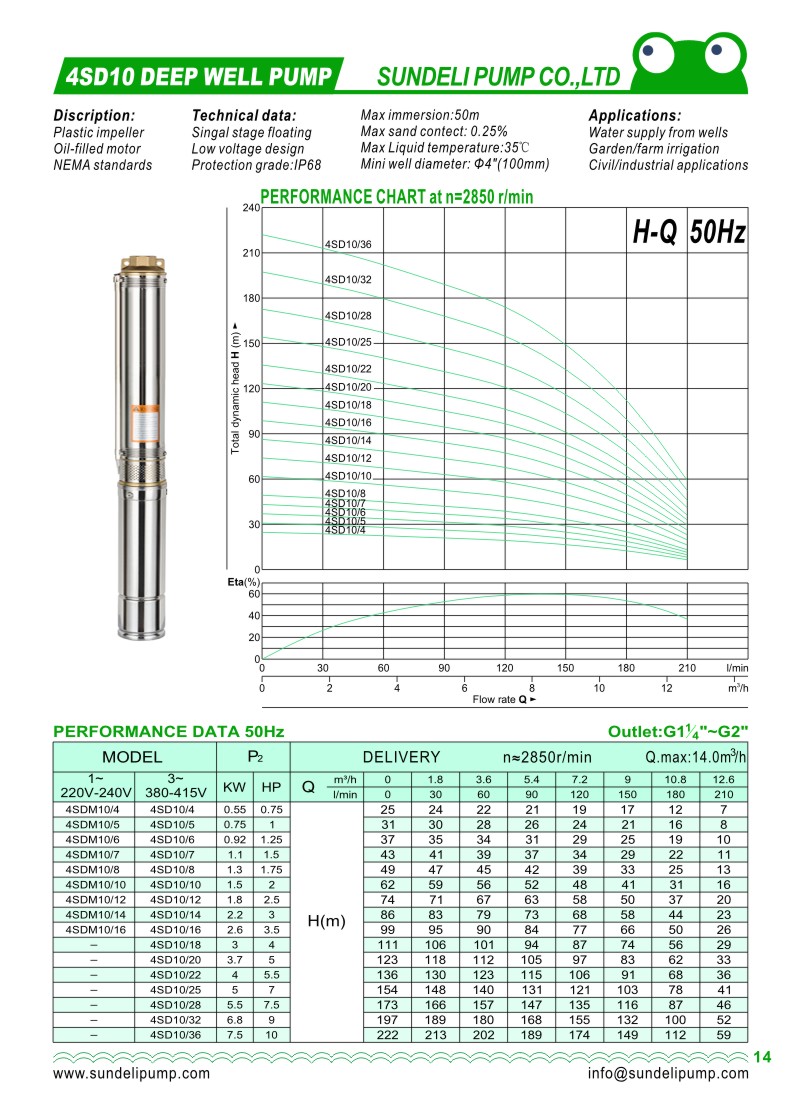

4SD10 series pump Catalog below:

Catalog for 4SD10 Series Multi-stage Stainless Steel Deep Well Submersible Pump

220V/50Hz(single phase pump list):

4SDM10/4-0.55KW, 4SDM10/5-0.75KW, 4SDM10/6-0.92KW, 4SDM10/7-1.1KW,4SDM10/8-1.3KW, 4SDM10/10-1.5KW, 4SDM10/12-1.8KW, 4SDM10/14-2.2KW, 4SDM10/16-2.6KW

380V/50Hz(three phase pump list):

4SD10/14-2.2KW, 4SD10/16-2.6KW, 4SD10/18-3.0KW, 4SD10/20-3.7KW, 4SD10/22-4.0KW, 4SD10/25-5.0KW, 4SD10/28-5.5KW, 4SD10/32-6.8KW, 4SD10/36-7.5KW

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h------	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	OUTLET
4SDM10/4	4SD10/4	0.75	1	H(m)	25	24	23	21	20	18	14	10	6	2.0"
4SDM10/5	4SD10/5	0.92	1.25		31	30	28	27	25	22	18	13	7	2.0"
4SDM10/6	4SD10/6	1.1	1.5		37	36	34	32	30	26	22	16	9	2.0"
4SDM10/7	4SD10/7	1.3	1.75		43	42	40	37	35	31	25	18	10	2.0"
4SDM10/8	4SD10/8	1.5	2		49	48	45	43	40	35	29	21	12	2.0"
4SDM10/10	4SD10/10	1.8	2.5		63	60	56	54	50	44	36	26	14	2.0"
4SDM10/12	4SD10/12	2.2	3		75	72	68	64	60	53	43	31	17	2.0"
4SDM10/14	4SD10/14	2.2	3		87	84	79	75	70	62	51	36	20	2.0"
-	4SD10/16	3	4		100	96	90	86	80	71	58	41	23	2.0"
-	4SD10/18	3	4		112	108	102	96	90	79	65	47	26	2.0"
-	4SD10/20	4	5.5		125	120	113	107	100	88	72	52	29	2.0"
-	4SD10/22	4	5.5		137	132	124	118	110	97	80	57	32	2.0"
-	4SD10/25	5.5	7.5		155	150	141	134	125	110	90	65	36	2.0"
-	4SD10/28	5.5	7.5		175	168	158	150	140	124	101	72	40	2.0"
-	4SD10/31	7.5	10		193	186	175	166	155	137	112	80	45	2.0"

CHINA 110V 220V Submissive Irrigation Long Distance Water Supply Diesel Engine Submersible Aquarium Deep Well Pump, 300 ft deep well pump, deep well submersible pump, best deep well pump, deep well jet pump, deep well water pump price, deep well pump installation diagram, goulds deep well pump, 400 ft deep well pump, deep well pumps for sale, deep well pump installation diagram, deep well pump installation, deep well pump replacement, deep well pump price, deep well pump canadian tire, deep well pump parts, deep well pump lowes, deep well pump installation cost philippines, solar deep well pump, submersible deep well pump, manual deep well pump, goulds deep well pump, how to install deep well pump, how does a deep well pump work, 1 hp deep well pump, myers deep well pump, deep water well pump, deep hand well pump, deep jet well pump, deep water well pump installation, deep well pumps, deep well pumps for sale near me, etc.

China wholesale best quality 4 inch 4SD 1 hp deep well submersible water pumps

More pumps for choose:

3" cast iron outlet multi stage submersible deep well pump 4" borehole deep well submersible pump automatic production assemble line

2" deep well submersible pump brass outlet 4" deep well submersible pump brass suction with perfect filter prevent sand enter into pump body

3" Vortex peripheral brass impeller deep well submersible pump 3SKM100-0.75KW 3" helical screw rubber set deep well submersible pump with float switch 3QGD1.2-50-0.55KW 3.5" helical screw rubber set deep well submersible pump 3.5QGD1-50-0.37KW

4SD12/16-3.0KW 4HP borehole deep well submersible pump loading container 6inch 6SR18/10-7.5KW 10HP borehole deep well submersible pump plastic impeller 6inch 6SP46/10-15KW 20HP borehole deep well submersible pump 304 stainless steel impeller

pump manufacture video: http://youtu.be/6OyANpwiWOc

Pump Precautions for use:

The temperature of the medium does not exceed 40 degrees

The pH value (pH) of the medium is between 6.5-8.5

The volume ratio of solid impurities in the medium is not more than 0.25%, the particles are not more than 2mm

The frequency of the power supply is 50hz, the voltage is 220V AC for a single phase, and the three-phase voltage is 380V. The voltage fluctuation range is better preferably +-10% of the rated value.

The deepest diving depth is not more than 150m, and the shallowest is not less than 5m.

Pump Application:

China 4" 110V-220V 60hz High Pressure Electric Water Pump Motor Price for Borehole deep Well, 4SD series 4 inch Stainless steel deep well submersible pump is a high-lift submersible pump, suitable for pumping clean water, drinking water, water tower, underground water intake, farmland irrigation, park fountain, garden irrigation, household water, engineering building, factory pumping etc.

0.5HP Stainless steel deep well submersible pump use for drinking water 1.0 HP Stainless steel deep well submersible pump use for water tower 2.0 HP Stainless steel deep well submersible pump use for well pumping 3.0 HP Stainless steel deep well submersible pump use for building boosting

4.0HP Stainless steel deep well submersible pump use for farmland irrigation 5.5HP Stainless steel deep well submersible pump use for park fountain 7.5 HP Stainless steel deep well submersible pump use for engineering building 10HP Stainless steel deep well submersible pump use for industry pumping
