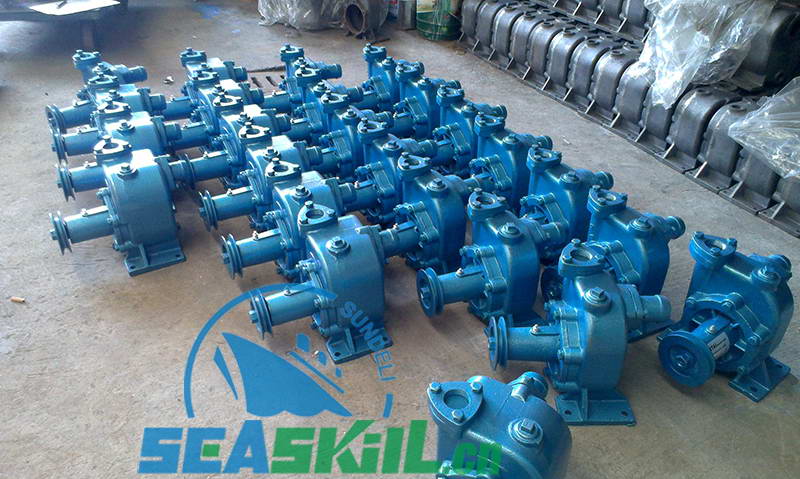

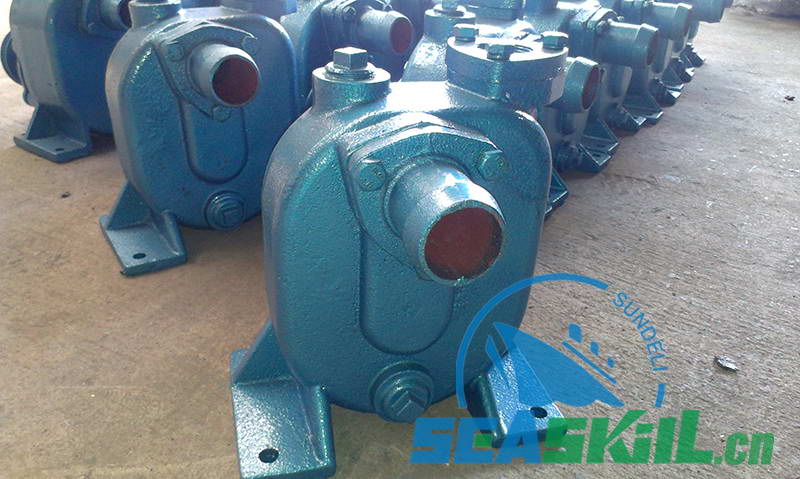

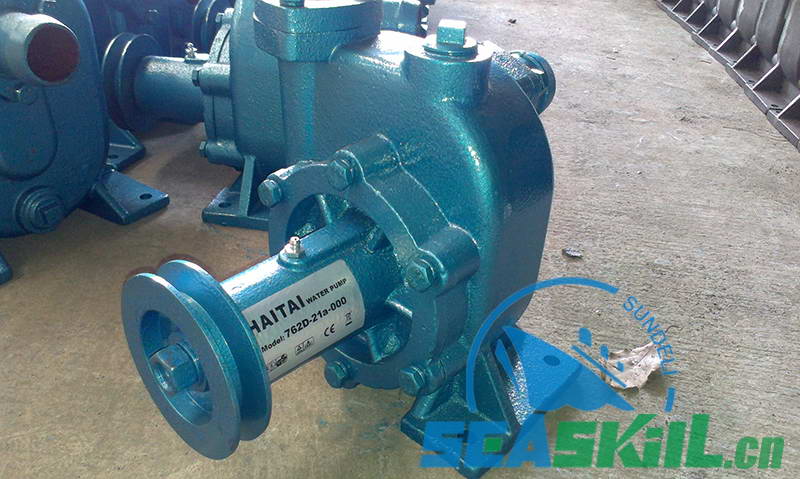

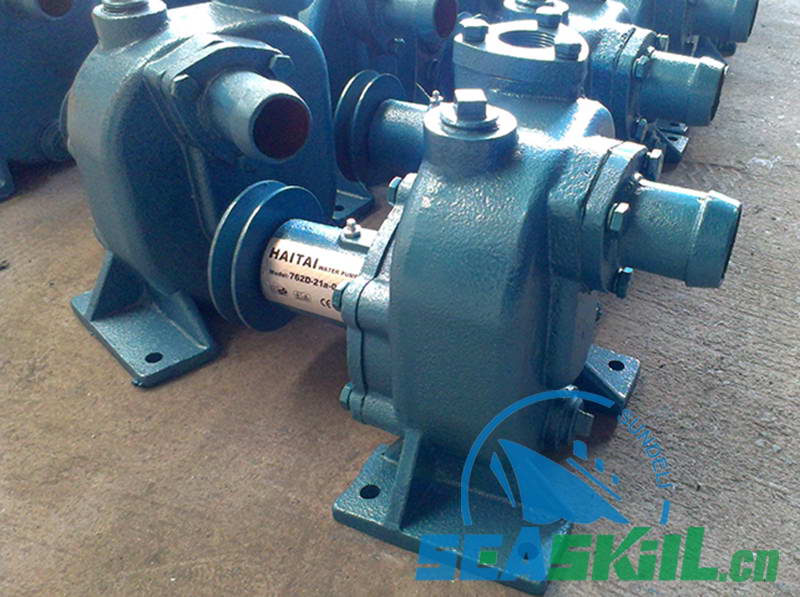

Shanghai G6135/G128 marine diesel engine cooling sea water pumpShanghai 6105, Shangchai 6135,Nanchai 6135,Guichai 6135,Yuchai YC6,Weichai 6135, Deutz marine diesel engine SEA WATER PUMP 762D-21A-000(14m3/hour) Cast iron Marine diesel engine cooling sea water pump, single stage impeller,self-priming pump,it can be applied to Shangchai 6105, Shangchai 6135,Nanchai 6135,Guichai 6135,Yuchai YC6,Weichai 6135, Deutz marine diesel engine heat exchanger cooling water circulating. Used for Shipping, Fishing boat, Shipbuilding, Engine host matching,Wash deck, Fire fighting, etc.

762D-21b-000(14m3/hour) Cast iron Marine diesel engine cooling sea water pump is single stage impeller,single suction, cantilevered centrifugal pump, corrosion resistance, long life, low noise, high efficiency, suitable for ship sewage, pumping clean water, dirty water, raw water, pumping sea water for marine diesel engine heat exchanger cooling water circulating, pumping a variety of oil materials, fire pump and deck wash pump, etc.

Performance data:

Drive mode: V-Belt

Impeller diameter: 118mm

Equipped with power: 1.7kw/2.3hp

Suitable speed: 2850r/min

Flow: 14000 L/hour

Head: 15 meters

Suction: 5 meters

Power consumption: 1.83kw

installation screw hole: 13mm

Screw hole center distance: Length 202mm/Wide 112mm

Inlet and outlet: cast iron 53x10mm
