Application:

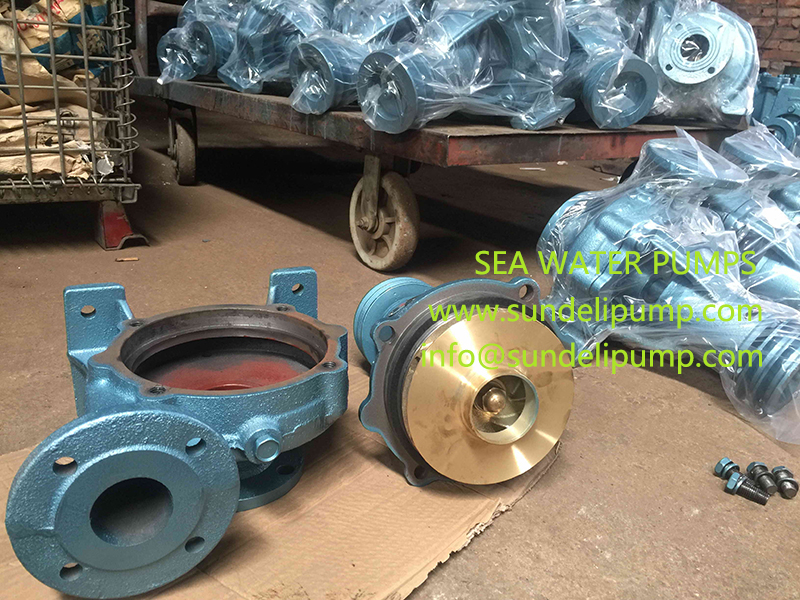

China Weichai 6170 8170 Marine diesel engine cooling sea water pump 170Z.17D. 50-31A 50-31AZ Cast iron Marine diesel engine cooling sea water pump can be applied to Weichai 6170, Weichai 8170 marine diesel engine heat exchanger cooling water circulating. Used for Shipping, Fishing boat, Shipbuilding, Engine host matching,etc.

China weichai6170 8170 Marine diesel engine cooling sea water pump 50-31AZ Cast iron Marine diesel engine cooling sea water pump is single stage impeller,single suction, cantilevered centrifugal pump, corrosion resistance, long life, low noise, high efficiency, suitable for ship sewage, pumping clean water, dirty water, raw water, pumping sea water for marine diesel engine heat exchanger cooling water circulating, pumping a variety of oil materials, fire pump and deck wash pump, etc.

Performance data:

Drive mode: V-Belt

Impeller diameter: mm

Equipped with power: 4kw/5.5hp

Suitable speed: 2850r/min

Flow: 30000 L/hour

Head: 32 meters

Suction: 7 meters

Power consumption: 4kw

installation screw hole: mm

Screw hole center distance: Length 197mm/Wide 90mm

Inlet and outlet: cast iron 51mm(2")

Weight:23kgs.
