Model
|
Flow Rate
|
Voltage
|
Max Draw
|
Fuse Amps
|
Head
|
Wire Lead
|
Outlet Dia
|
N.W. / G.W
|
|
NMBP12-G1500-50-12
|
1500 GPH
|
12V
|
8.0A
|
12.0A
|
16' (5m)
|
3 (1m)
|
1-1/8"
|
1.13/1.21 kg
|
|
NMBP12-G1500-50-24
|
1500 GPH
|
24V
|
4.0A
|
7.0A
|
16' (5m)
|
3 (1m)
|
1-1/8"
|
1.13/1.21 kg
|
|
Pump Design:
|
|
|
Type:
|
Centrifugal
|
|
Outlet Dia:
|
1-1/8" (29 mm)
|
|
Liquid:
|
110°F (43°C) Max.
|
|
Dry-Prime:
|
No (looded Inlet)
|
|
Inlet PSI:
|
0 PSI (0 Bar)
|
|
Electrical:
|
|
|
Motor:
|
12/24V DC Permanent Magnet, Continuous Duty
|
|
Protection:
|
Need External Fuse (Not Supplied)
|
|
Leads:
|
18 AWG, 1 m long Leads
|
|
Fuse:
|
12 AmpS Recommended
|
|
Pump Power.
|
8 Amps Max Current Draw
|
|
Control:
|
No Control
|
|
Materials of Construction:
|
|
|
Housings.
|
ABS
|
|
Impeller:
|
High Strength Nylon
|
|
Hardware:
|
Stainless Steel Shaft
|
|
Agency Approvals:
|
|
|
CE
|
|
|

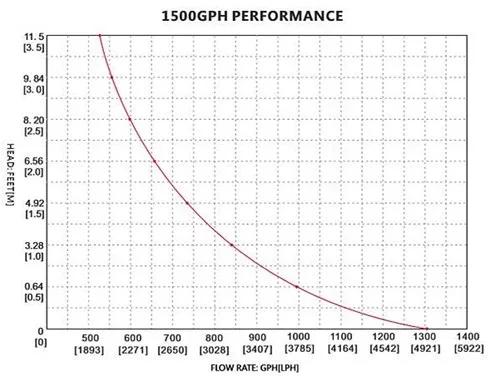

1500GPH-12V
|
||||
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
|
|
GPH
|
LPH
|
|
|
12
|
7.1
|
1308
|
4950
|
0
|
|
12
|
5.6
|
976
|
3694
|
0.5
|
|
12
|
8
|
865
|
3274
|
1
|
|
12
|
5.8
|
688
|
2604
|
1.5
|
|
12
|
9
|
840
|
3179
|
2
|
|
12
|
6.1
|
596
|
2256
|
2.5
|
|
12
|
6.2
|
570
|
2157
|
3
|
|
12
|
6.2
|
538
|
2036
|
3.5
|
|
|
||||
|
1500GPH-13.6V
|
||||
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
|
|
GPH
|
LPH
|
|
|
13.6
|
8.1
|
1427
|
5401
|
0
|
|
13.6
|
8.2
|
963
|
3645
|
1
|
|
13.6
|
9
|
906
|
3429
|
2
|
|

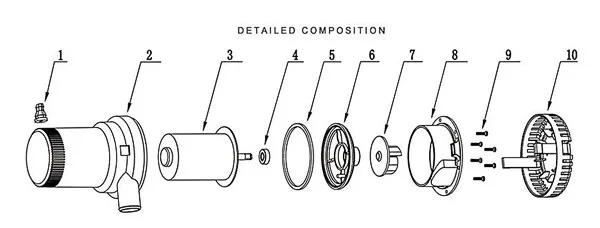

Key
|
Description
|
Quantity
|
|
1
|
Wire Buckle
|
1
|
|
2
|
Pump Housing
|
1
|
|
3
|
Motor
|
1
|
|
4
|
Seal Base
|
1
|
|
5
|
Seal
|
1
|
|
|
||
|
Key
|
Description
|
Quantity
|
|
6
|
Motor Bracket
|
1
|
|
7
|
Impeller
|
1
|
|
8
|
Pump Cover
|
1
|
|
9
|
Tapping Screw
|
6
|
|
10
|
Strainer
|
1
|
 |
